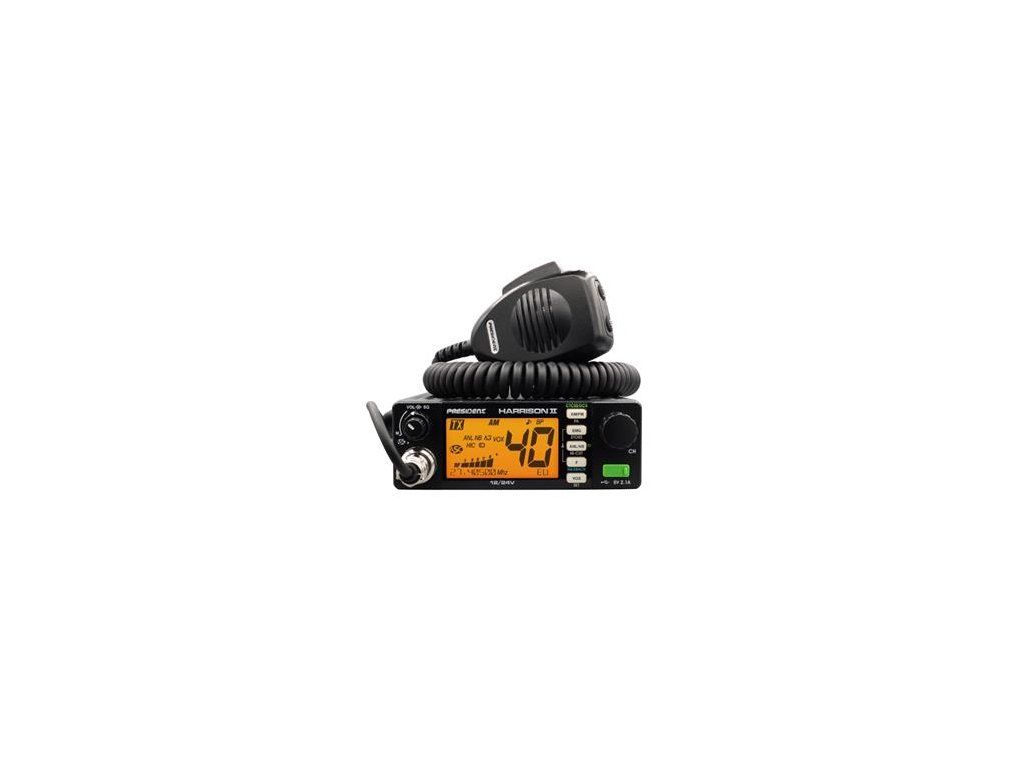

Radiostanice CB President Harrison II
Kód: TCZ-16300015
Garance doručení
nepoškozeného zboží
Přes 3000 výdejních míst
po celé ČR
Detailní popis produktu
40 channels AM / FM
- 12 / 24 V
- Channel rotary switch
- Volume adjustment and ON/OFF
- Manual squelch and ASC
- Multi-functions LCD display
- S-meter
- Vox function (Hands free)
- ANL filter, NB and HI-CUT
- Compander
- Noise Gate
- CTCSS/DCS
- Scan
- Preset emergency (EMG 1/2)
- F function key
- Beep Function
- Roger Beep
- Mode switch AM / FM
- Talkback
- Tone
- Micro Type (Electret / Dynamic)
- Public Address
- SWR Automatic
- Key locking
- Front microphone plug
- External loudspeaker jack
- USB 5V 2.1A
- Barva podsvícení:
Technická specifikace:
| Number of channels | : | 40 |
| Modulation modes | : | AM / FM |
| Frequency ranges | : | from 26.965 MHz to 27.405 MHz |
| CTCSS | : | 38 tones |
| DCS | : | 104 codes |
| Antenna impedance | : | 50 ohms |
| Power supply | : | 12 V / 24 V |
| Size | : | 125 (L) x 45 (H) x 165 (D) |
| DIN Size | : | |
| Weight | : | 0.9 kg |
| Accessories supplied | : | 1 microphone UP/DOWN and its hanger mounting cradle screws |
Transmission
| Frequency allowance | : | +/- 200 Hz |
| Carrier power | : | 4 W AM / 4 W FM |
| Transmission interference | : | inferior to 4 nW (- 54 dBm) |
| Audio response | : | 300 Hz to 3 KHz |
| Emitted power in the adj. channel | : | inferior to 20 µW |
| Microphone sensitivity | : | 7 mV |
| Drain | : | 1,7 A (with modulation) |
| Modulated signal distortion | : | 1,8 % |
Reception
| Maxi. sensitivity at 20 dB sinad | : | 0.5 µV - 113 dBm |
| Frequency response | : | 300 Hz to 3 kHz |
| Adjacent channel selectivity | : | 60 dB |
| Maximum audio power | : | 2 W |
| Squelch sensitivity | : | minimum 0.2 µV - 120 dBm / maximum 1 mV - 47 dBm |
| Frequency image rejection rate | : | 60 dB |
| Intermediate frequency rej. rate | : | 70 dB |
| Drain | : | 300 mA nominal / 750 mA maximum |
Doplňkové parametry
| Kategorie: | Vysílačky a dětské chůvičky |
|---|---|
| Záruka: | 24 měsíců |
