Anténa ATK-LOG ALP 5G MIMO 2x2 20 m kabel, konektor SMA, 698-3800 MHz

Kód: TCZ-A7064_20

Neohodnoceno

3 187,43 Kč 2 634,24 Kč bez DPH

Dostupnost: Skladem (2 ks)

Můžeme doručit do: 25.5.2026 Možnosti doručení

Podrobný popis

Detailní informace

Garance doručení

nepoškozeného zboží

Přes 3000 výdejních míst

po celé ČR

Popis
Diskuze

Detailní popis produktu

Podrobný popis

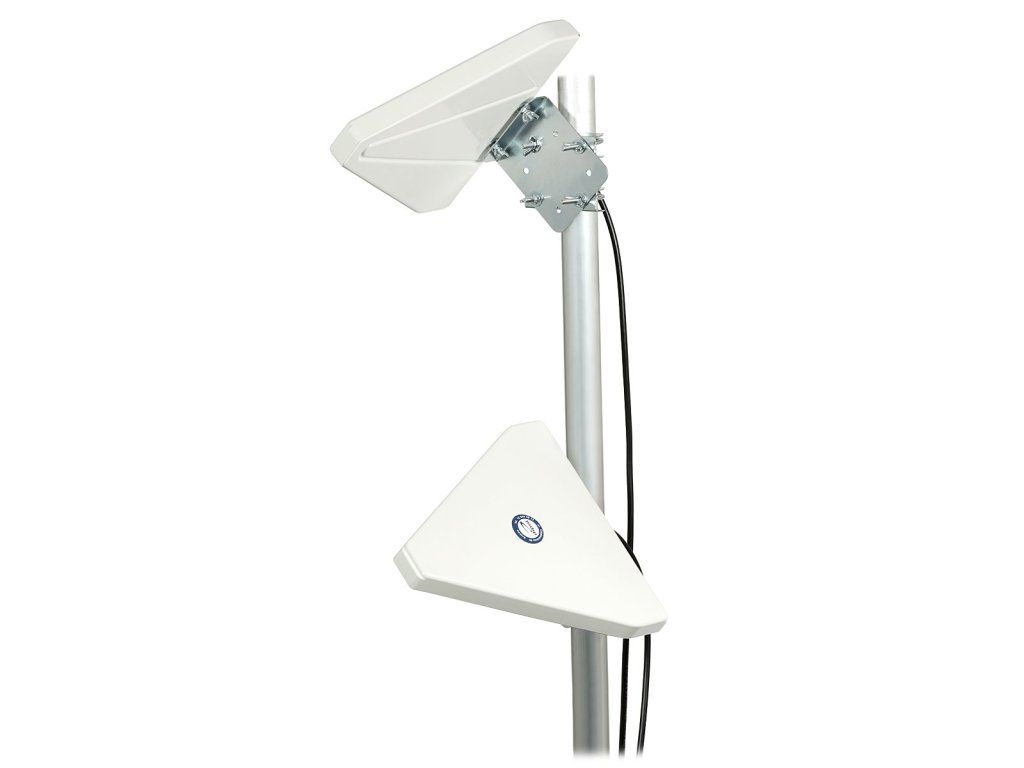

The set includes two identical antennas - one antenna should be mounted vertically, and the other horizontally. The distance between the antennas should be at least 37 cm.

The ATK-LOG ALP 5G MIMO logarithmic antenna is designed for use in GSM/DCS/UMTS/HSDPA/LTE/5G telephony systems operating in the 698-3800 MHz band. It perfectly solves the common problem of no signal at the place of installation of the modem with a GSM/UMTS/LTE/5G card. In such a situation, it is usually enough to connect an antenna to the modem that allows for obtaining a sufficient signal. Additionally, the antenna has 2 cables 20 meters long, terminated with an SMA plug.

The antenna is designed to work with LTE/5G modems (equipped with two antenna connectors), telephones and GSM, DCS, 3G, LTE, 5G modems.

MIMO (Multiple Input, Multiple Output) – is a method for multiplying the capacity of a radio link using multiple transmitting and receiving antennas to exploit multipath propagation.

Key features:

band: 698-3800 MHz

gain: up to 9 dBi

20 m cable

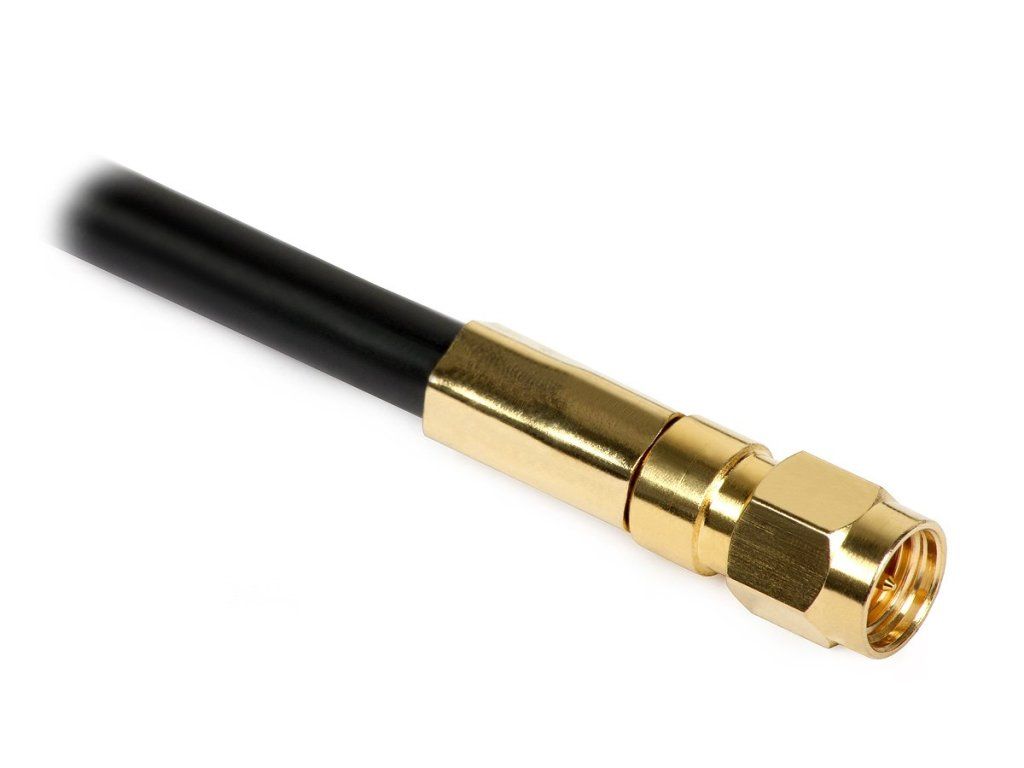

SMA plug

VSWR: max. 1.83

MIMO technique

short for DC

x-cross polarization

The parameters of the antenna have been tested by the staff of the Department of Electronics at the AGH University of Science and Technology in Krakow.
